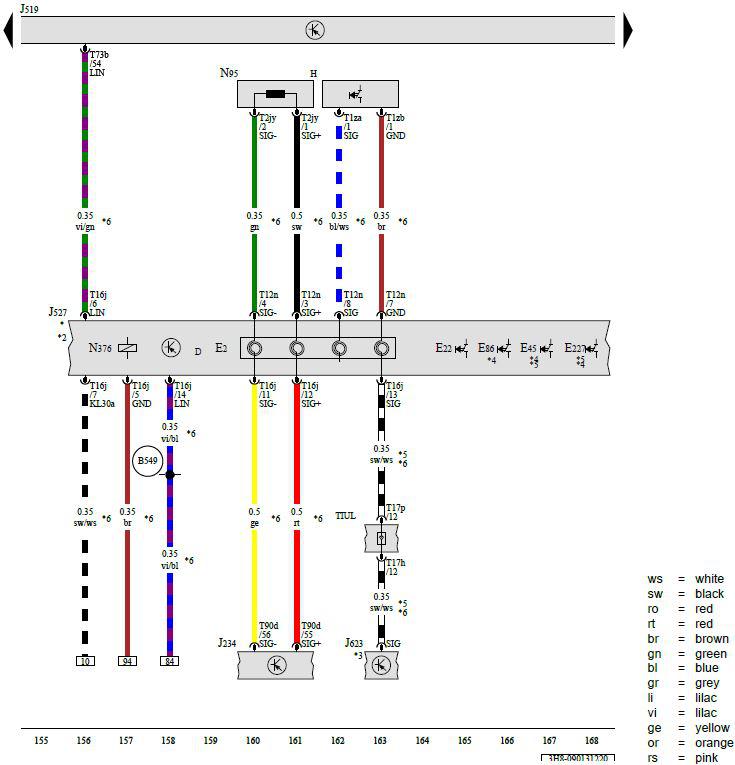

Signal Horn Activation, Airbag Control Module, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module, Driver Airbag Igniter, Ignition Switch Key Lock Solenoid
D - Ignition/Starter Switch
E2 - Turn Signal Switch, Left
E22 - Windshield Wiper Intermittent Mode Switch, Right
E45 - Cruise Control Switch, Left
E86 - Multifunction Indicator Selection Switch, Right
E227 - Cruise Control -Set- Button, Left
H - Signal Horn Activation
J234 - Airbag Control Module
J519 - Vehicle Electrical System Control Module
J527 - Steering Column Electronics Control Module
J623 - Engine/Motor Control Module
N95 - Driver Airbag Igniter
N376 - Ignition Switch Key Lock Solenoid
T1za - 1-Pin Connector, Cable Shoe
T1zb - 1-Pin Connector, Cable Shoe
T2jy - 2-Pin Connector, Black
T12n - 12-Pin Connector, Yellow
T16j - 16-Pin Connector, Black
T17h - 17-Pin Connector, Blue
T17p - 17-Pin Connector, Blue
T73b - 73-Pin Connector, Black
T90d - 90-Pin Connector, Yellow
TIUL - Coupling Point in Interior, Bottom Left
B549 - LIN Bus Connection 2 (in Main Wiring Harness)
* - Refer to Applicable Steering Column Electronics Wiring Diagram
*2 - Refer to Applicable Wiring Diagram for Multifunction Steering Wheel
*3 - Refer to Applicable Engine Wiring Diagram
*4 - For Vehicles Without Multifunction Steering Wheel
*5 - For Vehicles with Cruise Control System
*6 - For Vehicles Without Heated Steering Wheel
