Toll Registration Sensor, Chip Card Reader Control Module, Information Electronics Control Module 1, Mobile Communication 2-Way Signal Amplifier, Traffic Data Antenna, Storage Compartment with Cell Phone Interface

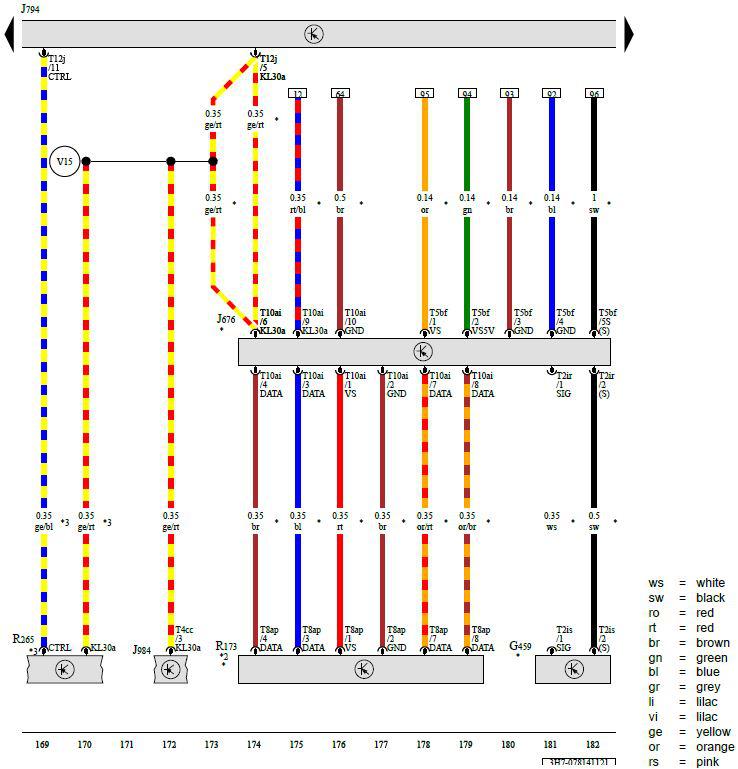

G00609464Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G459 -  Toll Registration Sensor

J676 -  Chip Card Reader Control Module

J794 -  Information Electronics Control Module 1

J984 -  Mobile Communication 2-Way Signal Amplifier

R173 -  Traffic Data Antenna

R265 -  Storage Compartment with Cell Phone Interface

T2ir -  2-Pin Connector, Yellow

T2is -  2-Pin Connector, Yellow

T4cc -  4-Pin Connector, Black

T5bf -  5-Pin Connector, Brown

T8ap -  8-Pin Connector, Black

T10ai -  10-Pin Connector, Black

T12j -  12-Pin Connector, Gray

V15 -  Connection (in Telephone Wiring Harness)

* -  For Vehicles with Japan Equipment

*2 -  Pre-Wired Component

*3 -  Refer to the Applicable Cell Phone System Wiring Diagram
