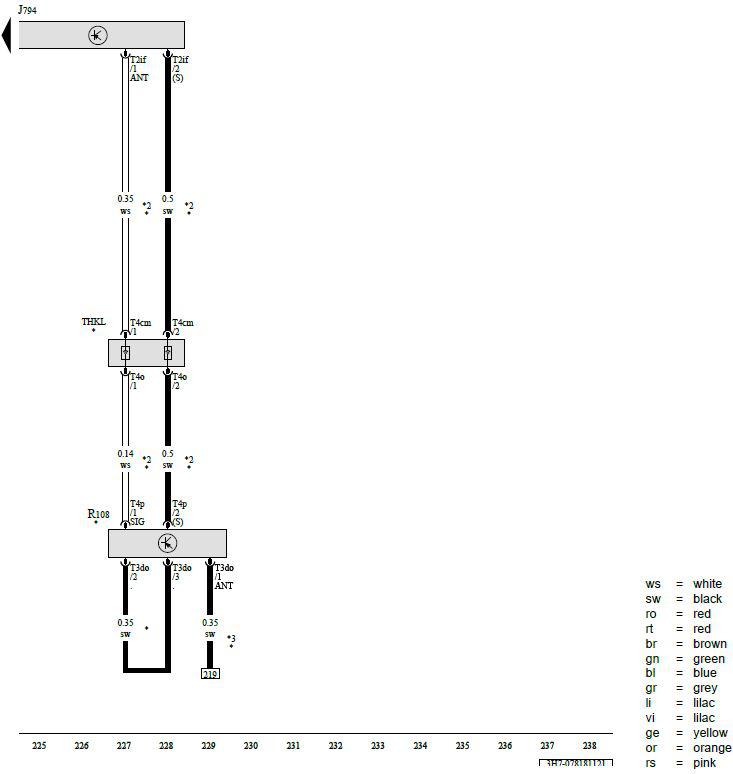

Information Electronics Control Module 1, Left Antenna Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794 -  Information Electronics Control Module 1

R108 -  Left Antenna Module

T2if -  2-Pin Connector, Black

T3do -  3-Pin Connector, Blue

T4cm -  4-Pin Connector, Black

T4o -  4-Pin Connector, Black

T4p -  4-Pin Connector, Black

THKL -  Coupling Point on Rear Lid, Left

* -  For RHD Vehicles

*2 -  For Vehicles with Digital Radio

*3 -  Depending on Equipment
