Automatic Headlamp Control And Stationary Cornering Lamp, Checking Function

• Vehicle must be in daylight.

-- Switch the ignition on.

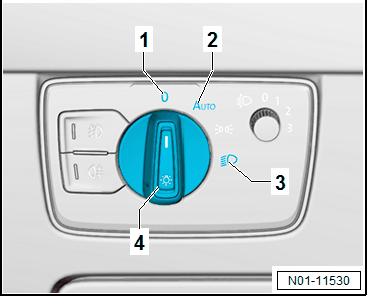

-- Turn the light switch -4- to the "Auto" -2- position.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The headlamp should not come on when it is bright.

Rain/light recognition sensor is located in upper center area of front windshield -arrow-.

-- Switch the ignition on.

-- Turn the light switch -4- to the "Auto" -2- position.

-- Cover the rain/light recognition sensor -arrow- from the outside by hand or with a suitable object.

The decrease in light is measured and the headlamps are switched on.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the light switch -4- to the "0" position -1- and switch off the ignition.

Stationary Cornering Lamp

The stationary cornering lamp is integrated in the headlamp.

-- Start the engine.

-- Turn on the low beam.

-- Turn on the turn signal.

-- Check the cornering lamp.

-- Repeat on the other side.
