Engine Cover, Removing And Installing, Common Rail Diesel Engines: Overview

May Not be Available for U.S. Passat

Applies only to MKB: CFFB and CKRA

Removing:

-- Loosen and lift the engine cover off of the mounting points -arrow-.

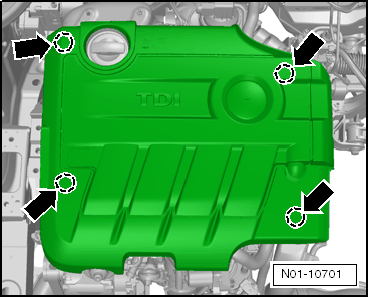

Fig 1: Identifying Engine Cover On Mounting Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing:

CAUTION:

Make sure the four fastening elements (ball sockets) are positioned correctly before installing the engine cover. Adjust their position if necessary. Otherwise the engine cover will get damaged.

-- If necessary push the ball sockets on the engine cover into the correct position.

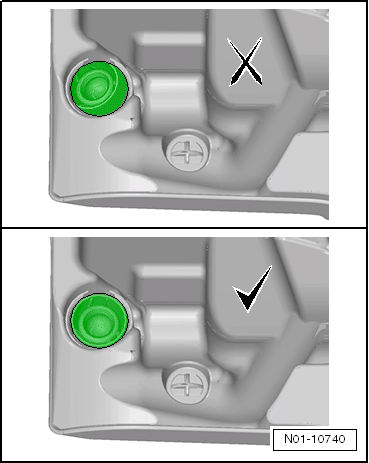

Fig 2: Identifying Ball Sockets On Engine Cover Correct Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the engine cover on the mounting points and press the corners in the catch.
