Rear Level Control System Sensor, Removing And Installing: Removing

-- Disconnect the connector -1-.

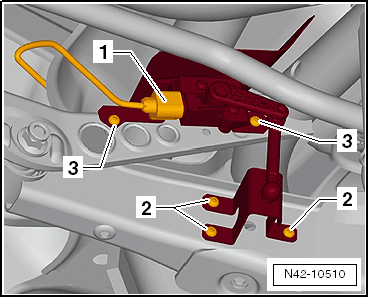

Fig 1: Identifying Left Rear Level Control System Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2- from the lower transverse link.

-- Remove the bolts -3- from the subframe.

-- Remove Left Rear Level Control System Sensor -G76-.
