Overview - Rear Level Control System Sensor

NOTE:

A replacement left rear level control system sensor -G76- only comes complete with the coupling rod and the upper and lower retaining plate.

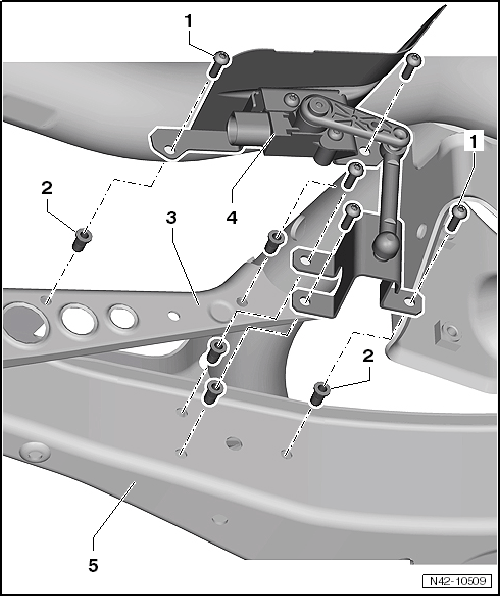

Fig 1: Exploded View Of Rear Vehicle Level Sensor
GWWN42-10509Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 5 Nm
    • M5 x 20
  2. Internally Threaded Pop Rivet
  3. Subframe
  4. Left Rear Level Control System Sensor -G76-
    • Complete with attachments
    • Lever -arrow- must point toward vehicle exterior
    • Removing and Installing. Refer to REAR LEVEL CONTROL SYSTEM SENSOR, REMOVING AND INSTALLING .
    • After replacing, perform basic setting of the headlamps

      Headlamp, checking basic setting using the Vehicle Diagnostic Tester.

  5. Lower Transverse Link
