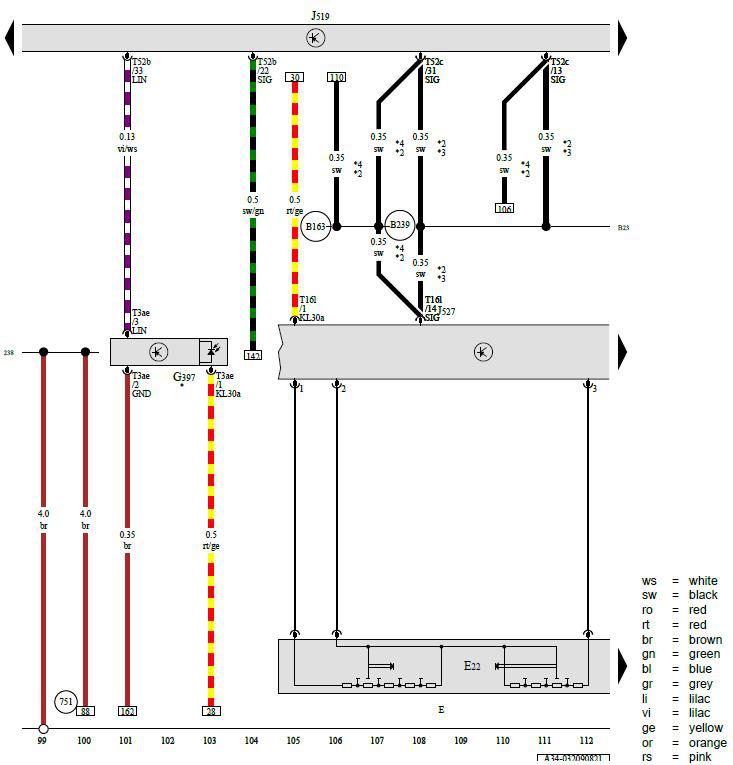

Rain/Light Recognition Sensor, Vehicle Electrical System Control Module, Steering Column Electronics Control Module
E - Windshield Wiper Switch
E22 - Windshield Wiper Intermittent Mode Switch
G397 - Rain/Light Recognition Sensor
J519 - Vehicle Electrical System Control Module
J527 - Steering Column Electronics Control Module
T3ae - 3-Pin Connector, Black
T16l - 16-Pin Connector, Black
T52b - 52-Pin Connector, Naturally Cloudy
T52c - 52-Pin Connector, Brown
238 - Ground Connection 1 (in Interior Wiring Harness)
751 - Ground Connection 2 on Right A-Pillar
B163 - Positive Connection 1 (15) (in Interior Wiring Harness)
B239 - Positive Connection 1 (50) (in Interior Wiring Harness)
* - Depending on Equipment
*2 - For Vehicles Without Access/Start Authorization System
*3 - For Vehicles with 2.0L Gasoline Engine
*4 - For Vehicles with 2.5L Gasoline Engine
