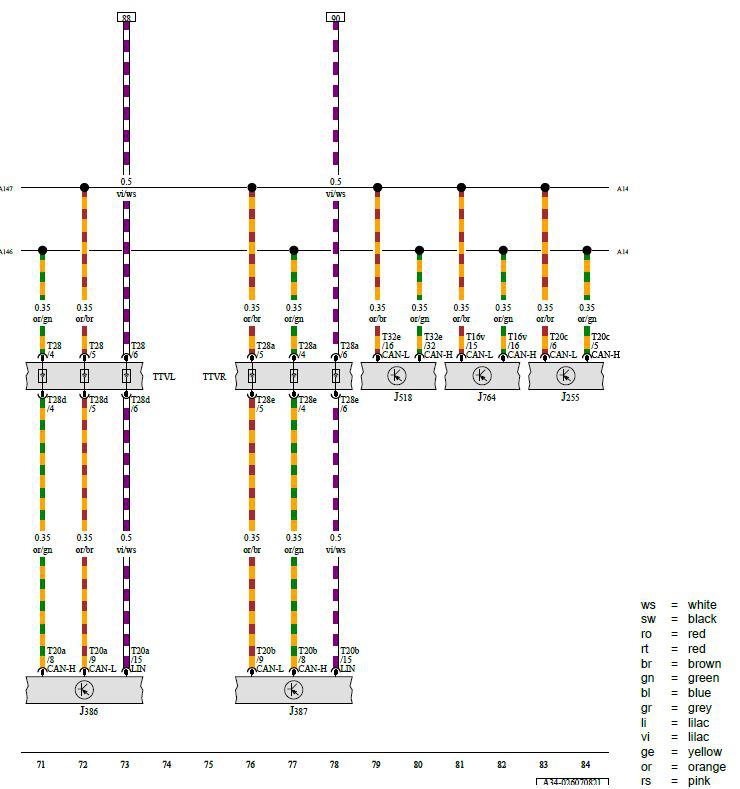

Front Passenger Door Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J255 -  Climatronic Control Module

J386 -  Driver Door Control Module

J387 -  Front Passenger Door Control Module

J518 -  Access/Start Authorization Control Module

J764 -  Electronic Steering Column Lock Control Module

T16v -  16-Pin Connector, Black

T20a -  20-Pin Connector, Black

T20b -  20-Pin Connector, Black

T20c -  20-Pin Connector, Black

T28 -  28-Pin Connector

T28a -  28-Pin Connector

T28d -  28-Pin Connector

T28e -  28-Pin Connector

T32e -  32-Pin Connector, Blue

TTVL -  Left Front Door Coupling Point

TTVR -  Right Front Door Coupling Point

A146 -  Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)

A147 -  Comfort System CAN Bus Low Connection (in Instrument Panel Wiring Harness)
