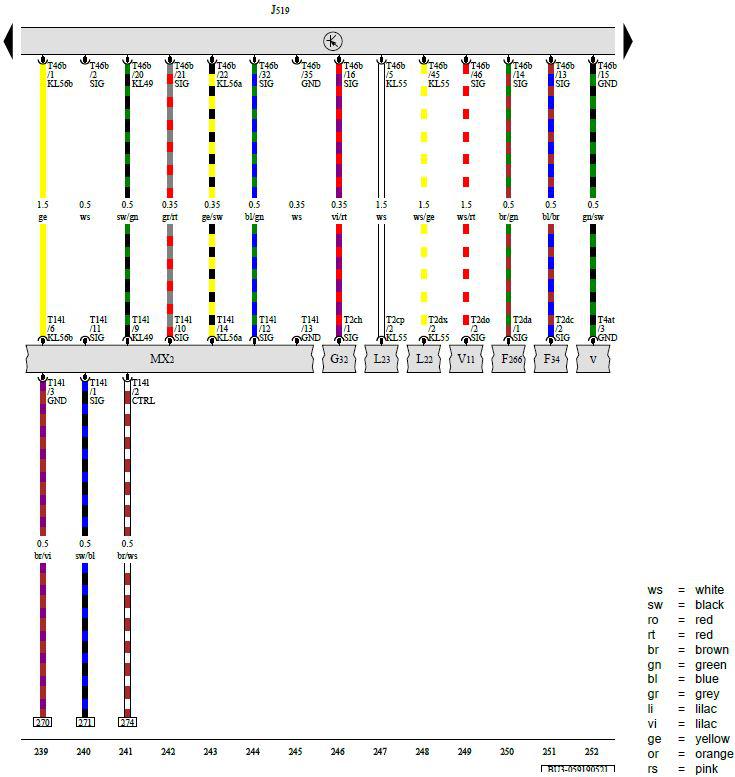

Vehicle Electrical System Control Module (15 Of 17)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F34 -  Brake Fluid Level Warning Switch

F266 -  Engine Hood Contact Switch

G32 -  Engine Coolant Level Sensor

J519 -  Vehicle Electrical System Control Module

L22 -  Left Front Fog Lamp Bulb

L23 -  Right Front Fog Lamp Bulb

MX2 -  Right Front Headlamp

T2ch -  2-Pin Connector

T2cp -  2-Pin Connector

T2da -  2-Pin Connector

T2dc -  2-Pin Connector

T2do -  2-Pin Connector

T2dx -  2-Pin Connector

T4at -  4-Pin Connector

T14l -  14-Pin Connector

T46b -  46-Pin Connector

V -  Windshield Wiper Motor

V11 -  Headlamp Washer System Pump
