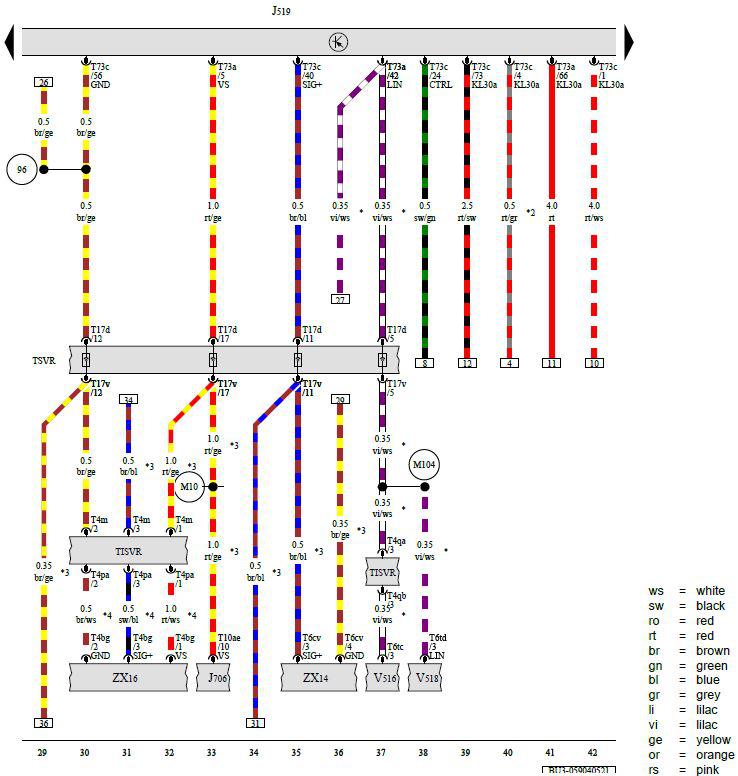

Vehicle Electrical System Control Module (1 Of 17)
J519 - Vehicle Electrical System Control Module
J706 - Passenger Occupant Detection System Control Module
T4bg - 4-Pin Connector
T4m - 4-Pin Connector
T4pa - 4-Pin Connector
T4qa - 4-Pin Connector
T4qb - 4-Pin Connector
T6cv - 6-Pin Connector
T6tc - 6-Pin Connector
T6td - 6-Pin Connector
T10ae - 10-Pin Connector
T17d - 17-Pin Connector
T17v - 17-Pin Connector
T73a - 73-Pin Connector
T73c - 73-Pin Connector
TISVR - Coupling Station in Right Front Seat
TSVR - Right Front Seat Coupling Station
V516 - Right Front Seat Backrest Fan 1
V518 - Right Front Seat Cushion Fan 1
ZX14 - Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module
ZX16 - Front Passenger Side Heated Seat
96 - Ground Connection 1 (in Heated Seats Wiring Harness)
M10 - Connection 1 (in Driver Seat Adjustment Wiring Harness)
M104 - LIN Bus Connection 1 (in Right Front Seat Wiring Harness)
* - For Vehicles with Seat Ventilation
*2 - For Vehicles with Anti-Theft Alarm System
*3 - Depending on Equipment
*4 - The Color of the Wires Depends on Vehicle Equipment
