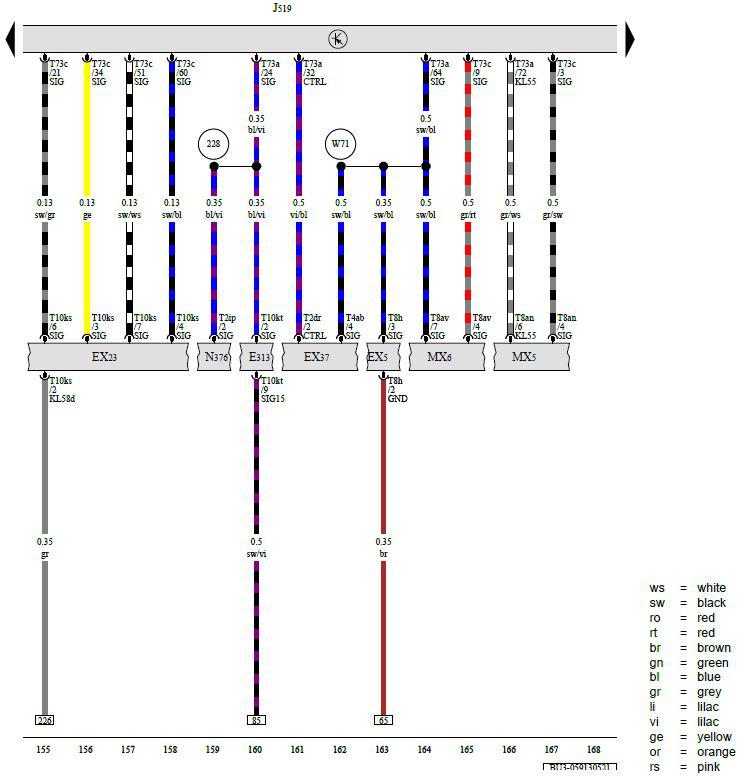

Vehicle Electrical System Control Module (10 Of 17)
EX5 - Interior Rearview Mirror
EX23 - Center Console Switch Module 1
EX37 - Rear Lid Handle
E313 - Selector Lever
J519 - Vehicle Electrical System Control Module
MX5 - Left Tail Lamp 2
MX6 - Right Tail Lamp 2
N376 - Ignition Switch Key Lock Solenoid
T2dr - 2-Pin Connector
T2ip - 2-Pin Connector
T4ab - 4-Pin Connector
T8an - 8-Pin Connector
T8av - 8-Pin Connector
T8h - 8-Pin Connector
T10ks - 10-Pin Connector
T10kt - 10-Pin Connector
T73a - 73-Pin Connector
T73c - 73-Pin Connector
228 - Connection (in Wiring Harness)
W71 - Back Up Lamp Connection (in Rear Wiring Harness)
