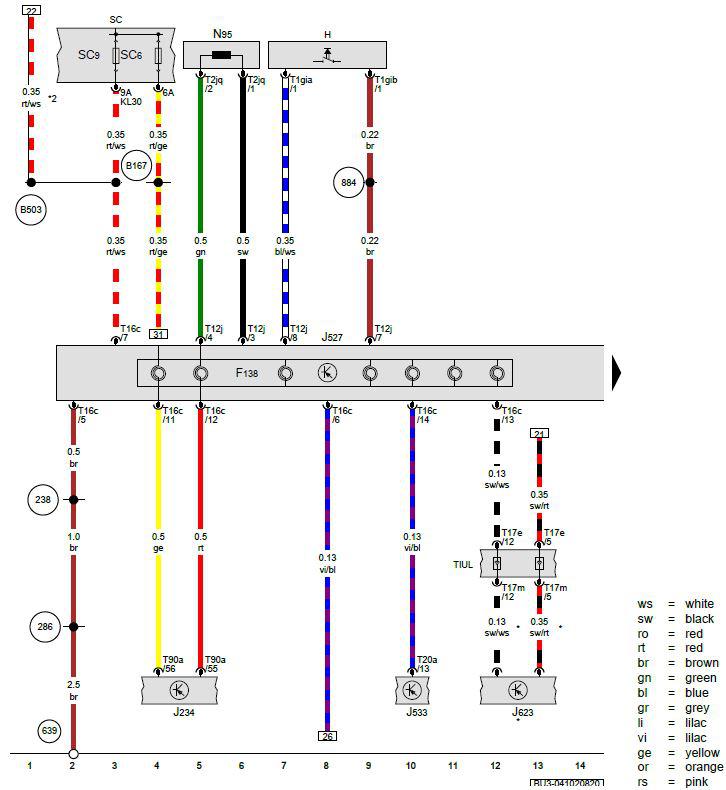

Signal Horn Activation, Airbag Control Module, Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface, Engine/Motor Control Module, Driver Airbag Igniter, Fuse Panel C
F138 - Airbag Spiral Spring/Return Spring with Slip Ring
H - Signal Horn Activation
J234 - Airbag Control Module
J527 - Steering Column Electronics Control Module
J533 - Data Bus on Board Diagnostic Interface
J623 - Engine/Motor Control Module
N95 - Driver Airbag Igniter
SC - Fuse Panel C
SC6 - Fuse 6 (On Fuse Panel C)
SC9 - Fuse 9 (On Fuse Panel C)
T1gia - 1-Pin Connector
T1gib - 1-Pin Connector
T2jq - 2-Pin Connector, Black
T12j - 12-Pin Connector, Yellow
T16c - 16-Pin Connector
T17e - 17-Pin Connector
T17m - 17-Pin Connector
T20a - 20-Pin Connector, Red
T90a - 90-Pin Connector, Yellow
TIUL - Coupling Point in Interior, Bottom Left
238 - Ground Connection 1 (in Interior Wiring Harness)
286 - Ground Connection 8 (in Interior Wiring Harness)
639 - Ground Connection on Left A-Pillar
884 - Ground Connection 1 (in Steering Wheel Wiring Harness)
B167 - Connection 56b (in Interior Wiring Harness)
B503 - Positive Connection 7 (30a) (in Interior Wiring Harness)
* - Refer to Applicable Engine Wiring Diagram
*2 - Depending on Equipment
