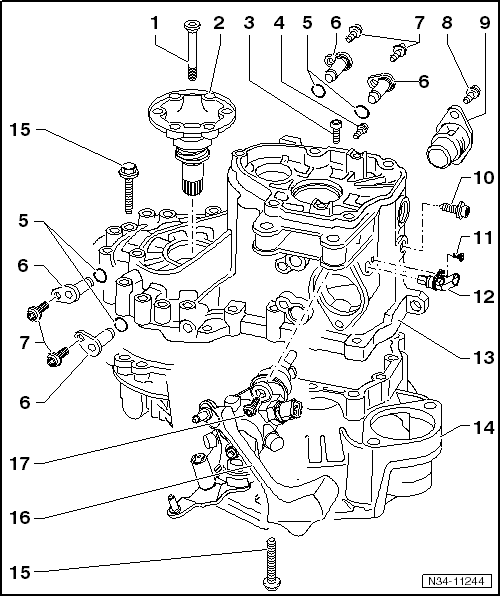

Overview - Transmission Housing And Gearshift Mechanism
- Bolt
- 25 Nm
- Flange Shaft with Pressure Spring
- Removing and installing. Refer to LEFT SEAL, REPLACING .
- Assembling. Refer to DIFFERENTIAL .
- TORX®
Socket Bolt
- 25 Nm
- Replace after removing
- For the reverse shaft support
- Self-locking
- TORX®
Socket Bolt
- 25 Nm
- Replace after removing
- For the reverse shaft support
- Self-locking
- O-Ring
- Replace after removing
- Pivot Pin
- Bolt
- 25 Nm
- Bolt
- 25 Nm
- Cap
- Internal Multi-Point Bolt
- 25 Nm
- Replace after removing
- For the reverse shaft support
- Bolt
- 5 Nm
- Transmission Neutral Position Sensor -G701-
- For vehicles with the Start/Stop System
- Transmission Housing
- Remove together with the 5th/6th gear. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Servicing. Refer to TRANSMISSION HOUSING AND CLUTCH HOUSING .
- Clutch Housing
- Servicing. Refer to TRANSMISSION HOUSING AND CLUTCH HOUSING .
- Hex Bolt
- 25 Nm +90°
- Replace after removing
- Gearshift Shaft with Gearshift Cover
(Shift unit)
- Servicing. Refer to SHIFT UNIT, SERVICING .
- Internal Multi-Point Bolt
- 25 Nm
