Gearshift Knob, Removing And Installing: Removing

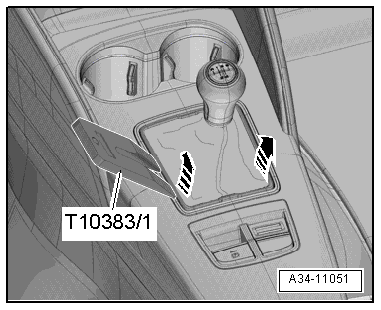

Fig 1: Identifying Wedge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Use the : T10383/1  to carefully pry out the selector lever boot from the center console insert -arrows-.

or

-- Open the ashtray.

Fig 2: Pushing Special Hook 3370 Under Plastic Frame For Boot

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the : 3370  all the way under the plastic frame for the boot in direction of -arrow 1- as shown.

-- Remove the boot with the plastic frame from the center console frame -A- in direction of -arrow 2-

-- Roll the selector lever boot up over the gearshift knob.

Fig 3: Identifying Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the clamp -arrow- and remove the gearshift lever knob with the shift lever boot.
