Spark Plugs, Replacing, 1.6L SRE Engines: Removing

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

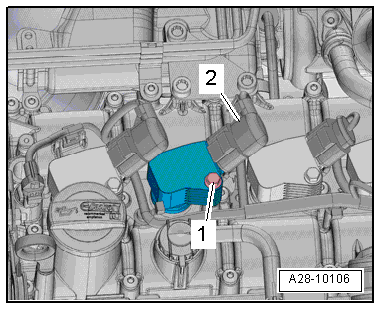

Fig 1: Identifying Ignition Coil And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1-.

-- Push the Puller:T10530 until the stop in the ignition coil opening -1-.

Fig 2: Identifying Puller T10530

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the knurled nut -2- in the direction of the -arrow-.

-- Pull the ignition coil on the Puller:T10530 in the direction of the -arrow- out of the cylinder head cover.

Fig 3: Identifying Puller T10530

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Repeat the procedure for all ignition coils with power output stage.

NOTE:

Note the installation position of ignition coils with power output stage.

Make sure to not kink or damage the lines.

-- Remove the spark plugs using Spark Plug Removal Tool:3122 B .
