CONNECTION CONNECTORS FOR EXTERNAL MULTIMEDIA DEVICES, External Audio Source Connection 2 -R231-

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

There are two versions: 11- and 4-pin.

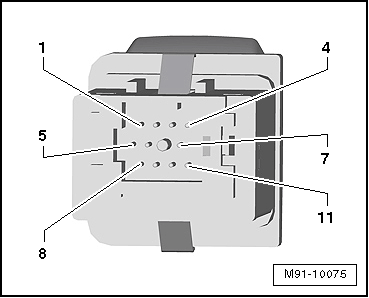

GWWM91-10075Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. VCC (+5 V)
  2. D (+)
  3. D (-)
  4. Ground
  5. Ground Shielding

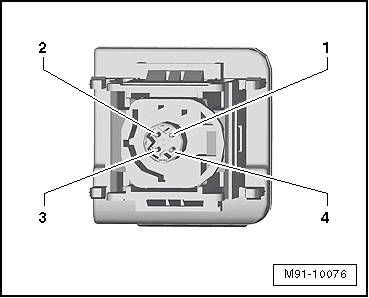

GWWM91-10076Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. D (+)
  2. VCC (+5 V)
  3. D (-)
  4. Ground
