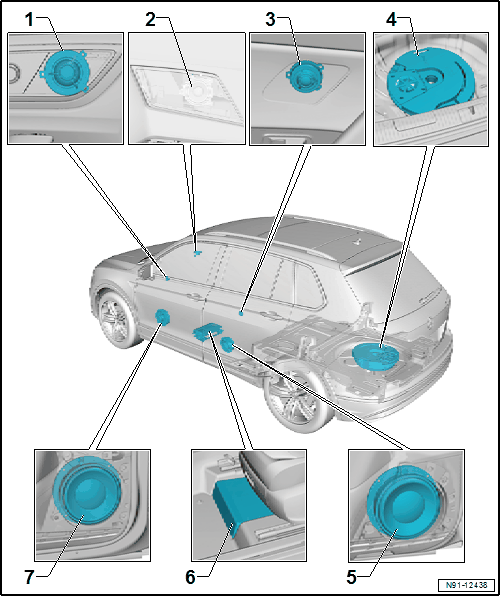

Component Location Overview - Sound System
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
- Front Treble Speaker
- Left Front Treble Speaker -R20-
- Right Front Treble Speaker -R22-
- In the upper front door trim panel
- Removing and Installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
- Center Speaker -R208-
- Inside the center of the instrument panel
- Removing and Installing. Refer to CENTER SPEAKER, REMOVING AND INSTALLING .
- Rear Treble Speaker
- Left Rear Treble Speaker -R14-
- Right Rear Treble Speaker -R16-
- In the center rear door trim panels
- Removing and Installing. Refer to LEFT AND RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING .
- Subwoofer -R211-
- In the spare wheel well
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
- Rear Bass Speaker
- Left Rear Bass Speaker -R15-
- Right Rear Bass Speaker -R17-
- In bottom of rear doors
- Removing and Installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-
- Under the left front seat
- Removing and Installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
- Front Bass Speaker
- Left Front Bass Speaker -R21-
- Right Front Bass Speaker -R23-
- In bottom of front doors
- Removing and Installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
