Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .

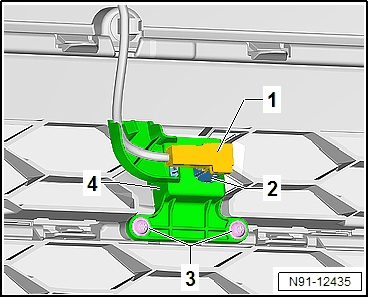

-- Release and disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the wire from the bracket -4-.

-- Remove the bolts -3-.

-- Unclip the bracket -4- with the Front Peripheral Camera -R243- -2- from the bumper cover.

-- Unclip the Front Peripheral Camera - R243- -2- from the bracket -4-.
