Component Location Overview - Peripheral Camera
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

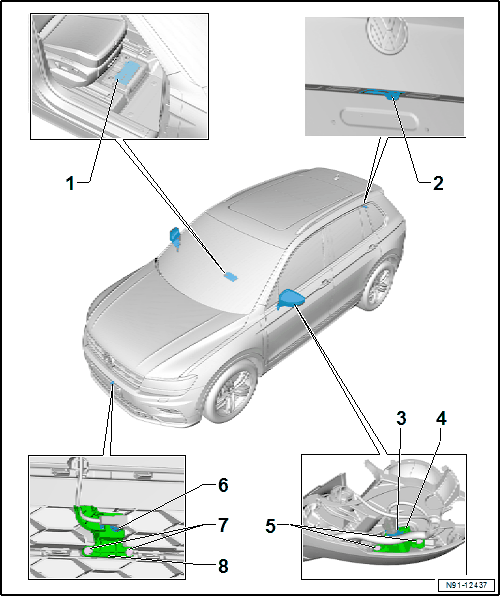

- Peripheral Camera Control Module -J928-
- Under the right front seat
- Removing and Installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Rear Peripheral Camera -R246-
- Integrated in the rear lid handle button
- Removing and Installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Left Peripheral Camera -R244- /Right Peripheral Camera -R245-
- In the left and right exterior rearview mirror
- Removing and installing the Left Peripheral Camera -R244-. Refer to Left Peripheral Camera -R244-, REMOVING AND INSTALLING .
- Removing and installing the Right Peripheral Camera -R245-. Refer to Right Peripheral Camera -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Bracket
- For the Left Peripheral Camera -R244- /Right Peripheral Camera -R245-
- Bolt
- 2 Nm
- Quantity: 2
- Front Peripheral Camera -R243-
- In the front bumper cover
- Removing and Installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Bolt
- 2 Nm
- Quantity: 2
- Bracket
- For the Front Peripheral Camera -R243-
