USB Distributor -R293-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Infotainment system display. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .

NOTE:

For clarity the instrument panel is not sown in the illustration. It is not necessary to remove the instrument panel in order to remove the USB Distributor -R293-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

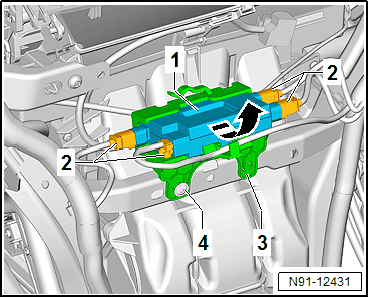

-- Pivot out the USB Distributor -R293- -1- in the direction of the -arrow- from the bracket -3-.

-- Unclip the wiring harness from the bracket -2-.

-- Release and disconnect the connectors -2-.

-- Remove the USB Distributor -R293- -1-.

NOTE:

When the bracket -3- for the USB Distributor -R293- -1- must be removed then the instrument panel must be removed beforehand. Refer to INSTRUMENT PANEL / DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the bolt -4-.

-- Unclip the bracket -3- from the instrument panel crossmember.
