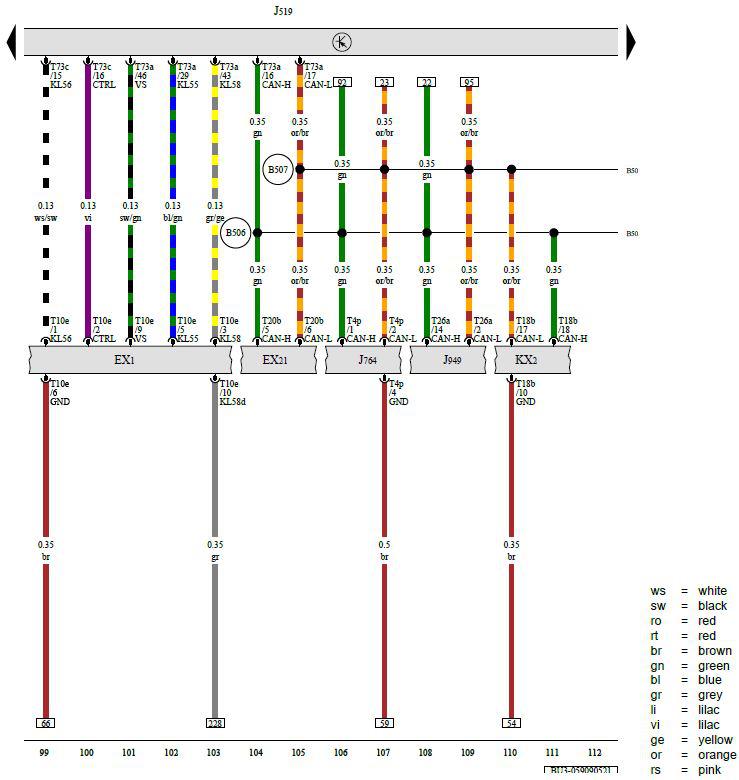

Vehicle Electrical System Control Module (6 Of 17)
EX1 - Rotary Light Switch
EX21 - Heater and A/C Controls
J519 - Vehicle Electrical System Control Module
J764 - Electronic Steering Column Lock Control Module
J949 - Control Module for Emergency Call Module and Communication Unit
KX2 - Instrument Cluster
T4p - 4-Pin Connector
T10e - 10-Pin Connector
T18b - 18-Pin Connector
T20b - 20-Pin Connector
T26a - 26-Pin Connector
T73a - 73-Pin Connector
T73c - 73-Pin Connector
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
