Passenger Occupant Detection System Control Module, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Pyrotechnical components can deploy unintentionally.

There is a risk of injury.

- Discharge static electricity by briefly touching the door striker.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the seat on the seat repair fixture.

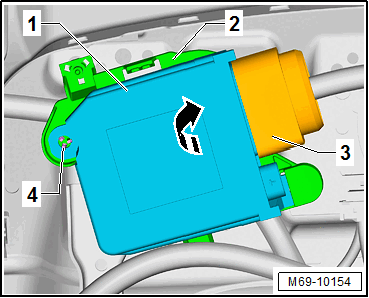

-- Disconnect the connector -3- from the Passenger Occupant Detection System Control Module -J706- -1-.

-- Loosen the locking mechanism -4-.

-- Remove the Passenger Occupant Detection System Control Module -J706- -1- from the bracket -2- in the direction of the -arrow-.
