44 Wheel Alignment (GROUP 44, NO. 20-73)
Publication date: 2020-02-12Reference number: GROUP 44, NO. 20-73
Supersedes refnos: 2056386/1, 2056386/2, 2056386/3, GROUP 44, NO. 19-70, GROUP 44, NO. 19-72
44 WHEEL ALIGNMENT
TECHNICAL SERVICE BULLETIN
| AUDI: | 2010-2021 All Models |
| GROUP: | 44 - Wheels - Tires, Wheel Alignments |
APPLICABLE MODELS AND YEARS
44 20 73 2056386/3 February 12, 2020. Supersedes Technical Service Bulletin Group 44 number 19-72 dated November 26, 2019 for reasons listed below.
| Model(s) | Year | VIN Range | Vehicle-Specific Equipment |
|---|---|---|---|
| All | 2010 - 2021 | All | Not Applicable |
CONDITION
| Revision Date Purpose | ||
|---|---|---|
| 3 | - | Revised header (Added Model Years) Revised Technical Background (Updated application) Revised Service (Updated Step 4 and 5) |
| 2 | 11/26/2019 | Revised Service (Updated tool) |
| 1 | 10/21/2019 | Initial publication |
Customer states:
- The vehicle pulls to one side.
And/or
- The steering wheel is crooked.
TECHNICAL BACKGROUND
This bulletin applies to axle alignment only.
PRODUCTION SOLUTION
Not applicable.
SERVICE
- Test drive the vehicle to reproduce the concern.
- Review Elsa at Repair Manual, Chassis >> Suspension, Wheels, Steering >> 44 Wheels, Tires, Wheel Alignment.
- Make sure that the software of the wheel alignment equipment is up-to-date.
- Upload the alignment protocol before and after the repair to DOC-IT (only for vehicles at PDI and/or below 1000 miles).NOTE: Do not upload pictures of the alignment computer screen to DOC-IT, only upload the complete alignment protocol as a pdf file.

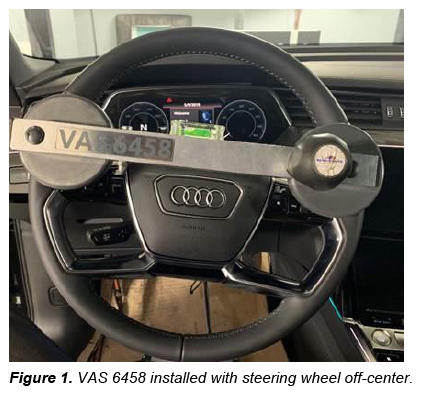

- If the concern was "steering wheel crooked", upload a picture of the steering wheel with VAS 6458 installed (Figure 1).
- Deviations at the steering wheel position by +/- 2 degrees are the result of permissible tolerances of the track adjustment and therefore acceptable.
NOTE: Please refer to ELSA for additional tools and/or other procedures necessary for the repair.
WARRANTY
| Claim Type: |
|
||
| Service Number: | 4485 | ||
| Damage Code: | 0010 | ||
| Labor Operations: | Use applicable SRT's for wheel alignment and predecessors if necessary | See SRT | See SRT |
| Diagnostic Time: | GFF | 0150 0000 | Time stated on the diagnostic protocol |
| Road test prior to the service procedure | 0121 0002 | 10 TU | |
| Road test after the service procedure | 0121 0004 | 10 TU | |
| Claim Comment: | As per TSB #2056386/3 | ||
All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.
REQUIRED PARTS AND TOOLS
| Tool Number | Tool Description |
|---|---|
| VAS 6458 | Steering wheel scale |
| VAS 61XX | Vehicle Diagnostic Tester |
ADDITIONAL INFORMATION
All part and service references provided in this TSB (2056386) are subject to change and/or removal. Always check with your Parts Department and/or ETKA for the latest information and parts bulletins. Please check the Repair Manual for fasteners, bolts, nuts, and screws that require replacement during the repair.
