01-23-12 - Late Production - Update Programming Engine-Motor Control Module -J623- P242100 (GROUP 01, NO. 23-12)
Publication date: 2023-12-11Reference number: GROUP 01, NO. 23-12
Supersedes refnos: 2072378, 2072378/1
01-23-12 - LATE PRODUCTION - UPDATE PROGRAMMING ENGINE-MOTOR CONTROL MODULE -J623- P242100
TECHNICAL SERVICE BULLETIN
Reference Number(s): GROUP 01, NO. 23-12 (2072378/1), Date of Issue:
December 11, 2023
| VOLKSWAGEN: | 2020-2021 Jetta |
| GROUP: | 01 - On-Board Diagnostic |
CONDITION
APPLICABLE VEHICLES
| Model(s) | Year | Eng. Code | Trans. Code | VIN Range From | VIN Range To |
|---|---|---|---|---|---|
| Jetta | 2020 - 2021 | 1.4T (DGXA, DJXA) | All | All | All |
REVISION TABLE
| Instance Number | Published Date | Version Number | Reason for Update |
|---|---|---|---|
| 2072378/1 | 12/11/23 | 01-23-12 | Original publication. |
CAUTION:
If software updates or flash campaign/actions are performed on a vehicle, a charger with at least 70A charging current MUST be used in order to avoid problems during software updates and flash campaign/actions.
Customer Complaint:
MIL-on with the following fault code stored in the Engine Control Module (ECM) Fault Memory:
DTC DESCRIPTION
| DTC | Description |
|---|---|
| P242100 | EVAP System Vent Valve Stuck Open |
DO NOT diagnose or replace components due to the above fault before performing the update function as explained in this bulletin.
TECHNICAL BACKGROUND
Monitoring strategy for FTIV diagnosis is too sensitive, causing erroneous DTCs.
PRODUCTION SOLUTION
Not applicable - vehicle is out of production.
SERVICE
Update-Programming Procedure:
CAUTION:
The Midtronics battery charger must
be connected to the vehicle battery for the duration of the programming, to ensure the battery state of charge remains above 12.5 volts during the update process. If the battery drops below 12.5 volts, the programming could fail which may result in damage to the control module. Control modules damaged by inadequate voltage will not be covered under the warranty policy. The technician should verify the vehicle voltage prior to starting the update process and should monitor the voltage for the duration of the update. The procedure may cancel itself if the hazard warning lights are not switched ON. The hazard warning lights prevent the system from switching to bus sleep mode during the update. ODIS-Service test should be updated to the latest GFF technical version 11.0.0 or higher and SW version 2.47.0 or higher.
DANGER
Radiator Fan(s) may cycle ON high speed during the Update Process! There is a risk that personal injury may result if contact is made with spinning fan blades. Keep hands and all objects away from Radiator Fan(s) during Update Process!
CAUTION:
Prior to launching the ODIS Service diagnostic applications and starting control module update process, confirm tester screen saver and power settings in accordance with Diagnostic Hardware & Windows® - VHW-20-02 Change Power Options After Windows®10 Upgrade. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure. When using a VAS 6150/X or 6160/X tester in conjunction with a VAS 6154 wireless transmitter head for a flash procedure, connect a USB cable between the transmitter head and the tester. Failure to do so may lead to errors during the flash procedure. VAS tools must only be used with their power adapters plugged in. Under no circumstances should they be used on battery power alone during the programming procedure.
NOTE:
To Update-Programming using Software Version Management (SVM), review and follow
instructions in Technical Bulletin Instance 2014603
"Software Version Management". The SVM process must be completed in its entirety, so the database receives the update confirmation response. A warranty claim may not be reimbursed if there is no confirmation response to support the claim or action is carried out that is not explicitly stated in the Technical Bulletin.
Update the Engine/Motor Control Module -J623- using the SVM Unit code as listed in the table below:
SOFTWARE INFORMATION
| Model | Engine | Old Software Part No. | Old Software Version | New Software Part No. | New Software Version (or higher) | SVM Unit Code |
|---|---|---|---|---|---|---|
| Jetta | 1.4T DGXA | 04E 906 024 BB | 7401 9945 9970 9971 9972 9973 |
04E 906 024 BB | 9974 | 4D14 |
| 04E 906 024 BC | 7400 9946 9970 9971 9972 9973 |
04E 906 024 BC | 9974 | 4D14 | ||
| 04E 906 024 AB | Z842 6946 9944 9970 9971 9972 |
04E 906 024 AB | 9974 | 4D14 | ||
| 9973 | ||||||
| 04E 906 024 BG | Z943 Z961 0905 1057 1520 2324 |
04E 906 024 BG | 2889 | 4D14 | ||
| 04E 906 024 BH | Z943 Z961 0906 1056 2048 2325 |
04E 906 024 BH | 2890 | 4D14 | ||
| 04E 906 024 BJ | Z943 Z961 0907 1055 2049 2326 |
04E 906 024 BJ | 2891 | 4D14 |
The procedure can be found in GFF under Functions/Component Selection, Software Version Management, Adapting Software.
NOTE:

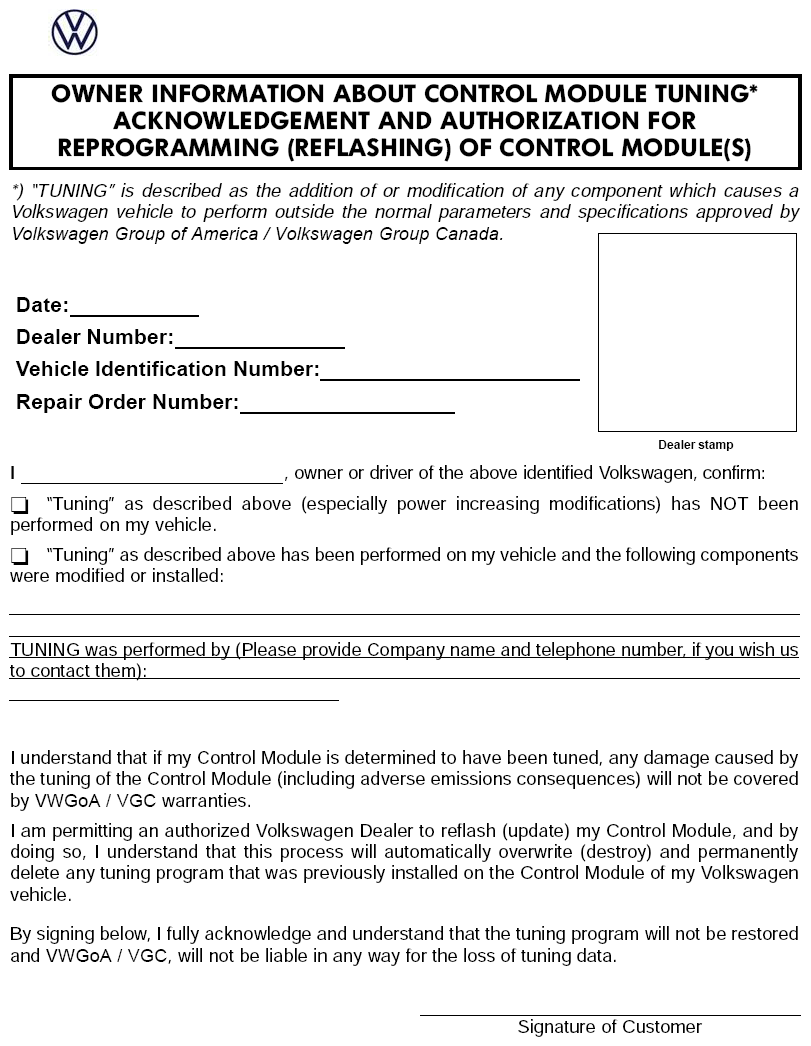

Ensure ECM/TCM Tuning Form has been completed and signed by customer as required in SVM Technical Bulletin Instance 2014603.
WARRANTY
WARRANTY INFORMATION
| To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual(1) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model(s) | Year(s) | Eng. Code(s) | Trans. Code(s) | VIN Range From | VIN Range To | ||||||||
| Jetta | 2020 - 2021 | 1.4T (DGXA) | All | All | All | ||||||||
| SAGA Coding | |||||||||||||
| Claim Type: | Use applicable Claim Type (1) | ||||||||||||
| Service Number: | Damage Code | HST | Damage Location (Depends on Service No.) | ||||||||||
| 2470 | 0039 | - | - | ||||||||||
| Parts Manufacturer | Jetta | 3ME(2) | |||||||||||
| Labor Operation (3) : Charge Battery | 27068950 = See Elsa for latest time units | ||||||||||||
| Labor Operation (3) : Update Programming Engine/Motor Control Module -J623- | 24705599 = 50 TU max. | ||||||||||||
| Causal Part: | 24705599 | ||||||||||||
| Diagnostic Time (4) | |||||||||||||
| GFF Time expenditure | 01500060 = Actual GFF print out | NO | |||||||||||
| Road Test | 01210004 = 10 TU | YES | |||||||||||
| Technical Diagnosis | 01320000 = 00 TU max. | NO | |||||||||||
| Claim Comment: Input "As per Technical Bulletin 2072378" in comment section of Warranty Claim. | |||||||||||||
|
|||||||||||||
REQUIRED PARTS AND TOOLS
TOOLS INFORMATION
| Tool Description | Tool No: |
|---|---|
| Midtronics Battery Tester/Charger | GRX3000VAS or MTRMSP0702 battery maintainer/charger |
| VAS Diagnostic Tool | VAS 6150/X & VAS 6160/X and ODIS Service with current online updates |
ADDITIONAL INFORMATION
All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
