Overview - Display Control Head

NOTE:

Depending on the equipment version, not all the buttons are used and the layout may vary.

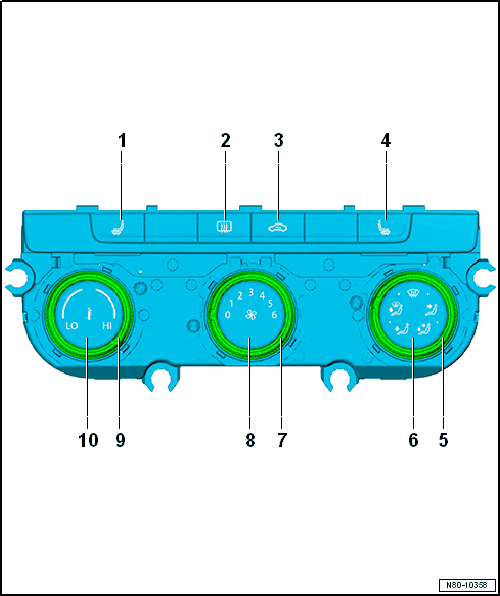

Fig 1: Exploded View Of Display Control Head
GWWN80-10358Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Heated Driver Seat Adjuster -E94-
    • Optional
    • The seat heater has 3 settings. The LED indicates the current setting.
    • If no LED is illuminated, the seat heating is switched off.
  2. Rear Window Defogger Button
    • The rear window defogger remains on for 4 to 20 minutes depending on the outside temperature.
  3. Recirculating Air Mode Button
    • The "recirculating air mode" turns off during ignition and returns to "fresh air mode".
    • On vehicles for Japan "recirculating air mode" stays on after ignition.
  4. Heated Front Passenger Seat Adjuster -E95-
    • Optional
    • The seat heater has 3 settings. The LED indicates the current setting.
    • If no LED is illuminated, the seat heating is switched off.
  5. Air Distribution Adjustment Knob
  6. Air Distribution Display
  7. Blower Speed Adjustment Knob
    • To the left: decreases the blower speed
    • To the right: increases the blower speed
  8. Blower Speed Display
  9. Temperature Adjustment Knob
    • To the left: lower the temperature
    • To the right: increases the temperature
  10. Temperature Setting Display
