Fresh Air Intake, Removing And Installing: Removing

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Remove the fresh air intake cover. Refer to FRESH AIR INTAKE COVER, REMOVING AND INSTALLING .

-- Remove the Air Quality Sensor -G238- (only on vehicles with climatronic). Refer to Air Quality Sensor -G238-, REMOVING AND INSTALLING .

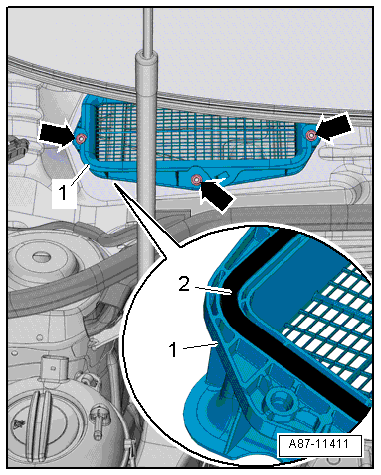

-- Remove the nuts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fresh air intake -1- from the plenum chamber.
