Engine And Transmission, Separating, Vehicles With DSG® Transmission

Special tools and workshop equipment required

• Engine Support Bridge - Special Hook (2 pc.): 10-222A/20
• Engine Sling - Engine Bracket: 2024A/1  from the Engine Sling: 2024A
• Shop Crane: VAS6100
• Engine Bung Set: VAS6122

Procedure

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Engine/transmission assembly removed and secured on the : T10497  .

-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .

-- Remove the nut -arrows- and remove the front bracket from the transmission fluid pan.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

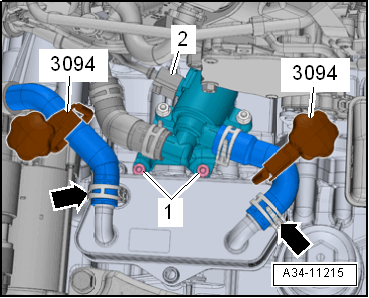

-- Loosen the hose clamps -arrows- and remove the coolant hoses from the transmission fluid cooler.

-- Remove the bolts -1- and move the Transmission Coolant Valve -N488- to the side.

-- Seal the open lines and connections with clean plugs from the : VAS6122  .

-- Engage the hook from the : 2024A  on the transmission lifting eye and secure it with the retainer -arrow-.

-- Use the : 10-222A/20  to engage the : VAS6100  on the : 2024A/1  .

-- Remove the bolts -1 to 8- for the transmission/engine connection.

-- Remove the transmission from the engine.
