Overview - Instrument Cluster

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

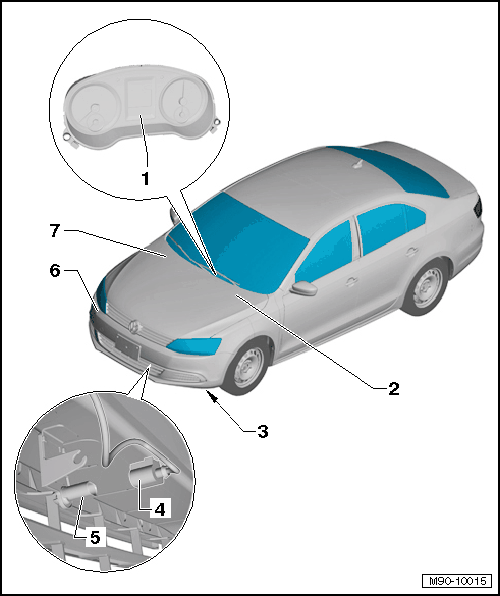

Instrument Cluster -KX2-
- Screw: 1.5 Nm
- With Instrument Cluster Control Module -J285-
- Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
- Replacing. Refer to Instrument Cluster -KX2-, REPLACING .
Brake Fluid Level Warning Switch -F34-
- Refer to BRAKE BOOSTER/BRAKE MASTER CYLINDER . .
Oil Level Thermal Sensor -G266-
- Refer to the appropriate information or OIL PAN/OIL PUMP (CVCA, CUUA, CUUB, DELA, DEBA, DEJA, DGMA) , OIL PAN/OIL PUMP (CZCA, CZDA not for NAR) , OIL PAN/OIL PUMP (CPLA, CPPA, CPKA, CPRA)OIL PAN/OIL PUMP (CBPA, CKJA) and OIL PAN/OIL PUMP (CNLA, CRJA) .
Outside Air Temperature Sensor -G17- Connector
Outside Air Temperature Sensor -G17-
- Removing and installing. Refer to OUTSIDE AIR TEMPERATURE SENSOR, REMOVING AND INSTALLING
Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING
Engine Coolant Level Sensor -G32-
- Refer to the appropriate information or COOLANT SYSTEM/COOLANT (CZCA, CZDA, CZTA) , COOLANT SYSTEM/COOLANT (CBPA, CKJA) ,COOLANT SYSTEM/COOLANT (CNLA, CRJA) , COOLING SYSTEM/COOLANT (CVCA, CUUA, CUUB, DELA, DEBA, DEJA, DGMA) and COOLANT SYSTEM/COOLANT (CPLA, CPPA, CPKA, CPRA) .
