Overview - Horn

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

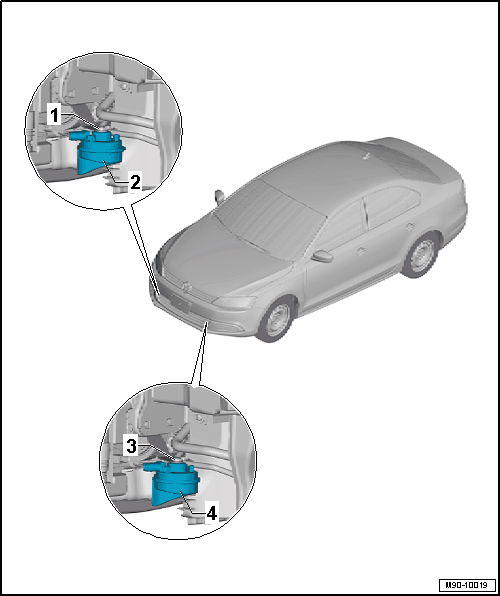

Nut
- 10 Nm
- Tightening specification bolt to longitudinal member: 20 Nm
Low Tone Horn -H7-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
  NOTE:
  In "Guided Fault Finding" , the Low Tone Horn -H7- can be found under the name Signal Horn and Dual Tone Horn -H1-.
Nut
- 10 Nm
- Tightening specification bolt to longitudinal member: 20 Nm
High Tone Horn -H2-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
  NOTE:
  In "Guided Fault Finding" , the High Tone Horn -H2- can be found under the name Signal Horn and Dual Tone Horn -H1-.
