Halogen Headlamps, Adjusting

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Adjusting the headlamps is invoiced separately.

NOTE:

Make sure, if present, both headlamps work identically when operating the manual headlamp range control.

WARNING:

On hybrid vehicles visually inspect the hybrid components in the work area. Refer to HYBRID COMPONENTS, VISUALLY INSPECTING FOR DAMAGE OF THE HIGH-VOLTAGE COMPONENTS AND WIRES .

Contact to the responsible high-voltage technician is something needs clarification.

-- Adjust the corresponding angle dimension on the headlamp adjusting unit. Refer to HEADLAMP ADJUSTMENT, CHECKING (SAE) for SAE headlamps.

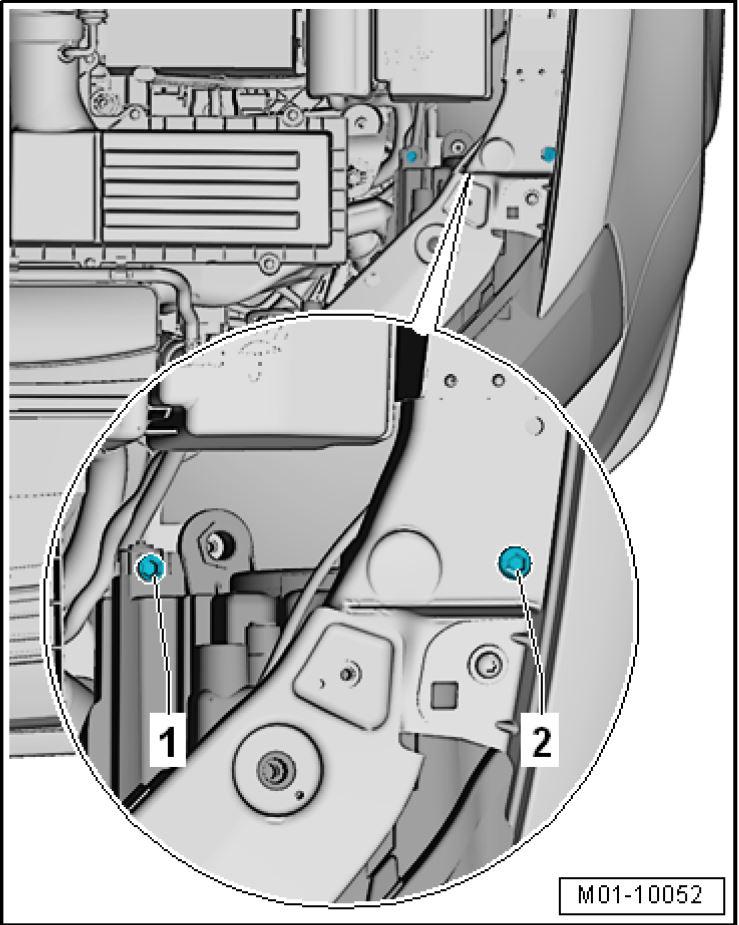

Left Headlamp, Adjusting:

Adjusting screws for the right headlamp are a mirror image.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Adjusting screw (inner hex socket) for height adjustment of low beam cut-off line -1-.
Adjusting screw (inner hex socket) for lateral adjustment of low beam cut-off line -2- (sealed on NAR vehicles)

-- First turn adjustment screw -1- to adjust height of cut-off line.

-- Then the lateral adjustment must be checked and, if necessary, correct using the adjusting screw -2-.
