Fender, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Remove the foam piece between the fender and the longitudinal member. Refer to -item ) Foam Piece-.
-- If equipped, remove the fender end plate insulation from the wheel housing. Refer to -iItem ) Fender End Plate Noise Insulation-.
-- Remove the fender end plate. Refer to OVERVIEW - END PLATE .
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the guide from the front bumper cover. Refer to OVERVIEW - GUIDES .
-- If equipped, remove the drip rail. Refer to OVERVIEW - DRIP RAIL .

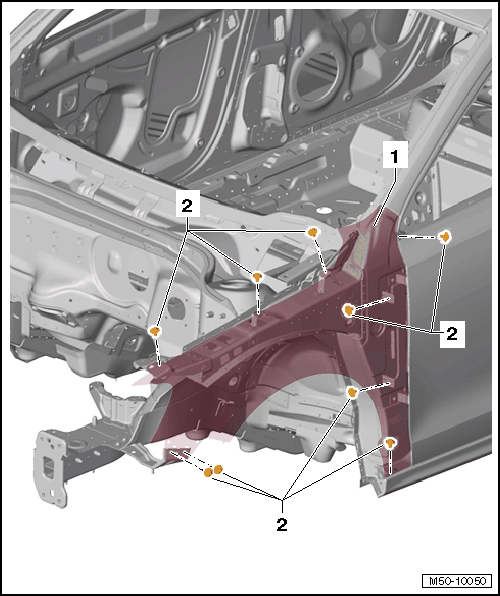

-- Remove the bolts -2-.
-- Carefully remove the fender -1-.
