Engine, Securing On Engine And Transmission Holder: Procedure

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the transmission from the engine.

Vehicles with an Automatic Transmission

-- Support the torque converter to keep it from "falling down", after separating the engine from the transmission.

Continuation for All Vehicles

WARNING:

Use locking pins at the hooks and drifts so that the engine cannot slip or move.

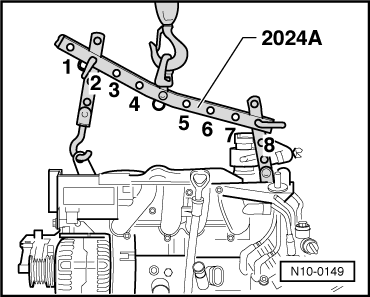

-- Engage the :2024A as follows and lift it out of the :VAS6931 using the Shop Crane.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Belt pulley side:

Third hole in the rail with holes in position 2

Transmission side:

Third hole in the rail with holes in position 8

NOTE:

The peg positions on the carrying strap marked 1 to 4 face the belt pulley.

The bores in the hole rail are counted from the hook.

-- Secure the engine using the :VW540 and :VW540/1B on the :VW313 . Remove the alignment sleeves to do this.

The engine can also be secured to the :VAS6095 .
