Windshield Wiper Arms, Removing And Installing: Installing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal. Note the following:
-- Deactivate the APP function. Refer to Wiper Motor Control Module -J400-, DEACTIVATING APP .
-- Turn on the ignition and then switch the windshield on and off so that the Windshield Wiper Motor -V- goes into its park position.

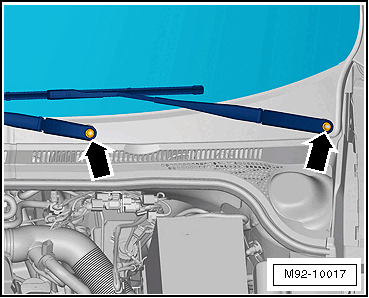

-- Mount both wiper arms on the windshield wiper arm shafts and tighten the nuts -arrows- hand-tight.
-- Adjust the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
-- Install the cover and the trim.
