Rain/Light Recognition Sensor, Servicing: Procedure

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Rain/Light Recognition Sensor -G397-. Refer to RAIN/LIGHT RECOGNITION SENSOR, REMOVING AND INSTALLING .

CAUTION:

The rain sensor electronics may be damaged.

Be careful not to insert the screwdriver all the way through the housing up to the rain sensor electronics.

Do not touch the rain sensor electronics.

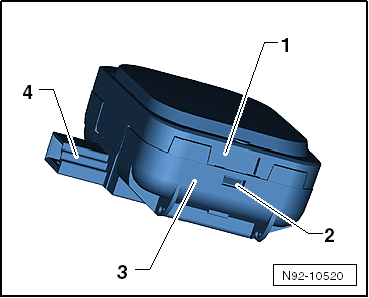

-- Press the tab -2- on both sides and separate the upper section -1- with optical unit from the lower section -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rain sensor electronics at the connector -4- from the old lower section and install the new electronics the exact same way.

CAUTION:

Do not touch the optical unit.

Remove the protective cover just before installing the Rain/Light Recognition Sensor -G397-.

-- Assemble the new housing upper section with optical unit and protective cover with the housing lower section.

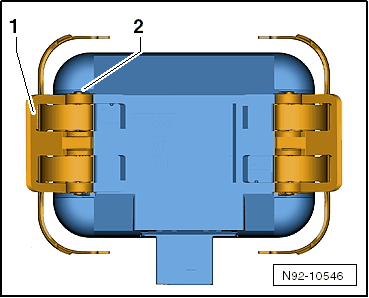

-- Pry the clip and bracket -1- out of the rain sensor housing -2- with a screwdriver.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Rain/Light Recognition Sensor -G397-. Refer to RAIN/LIGHT RECOGNITION SENSOR, REMOVING AND INSTALLING .

-- Code the Rain/Light Recognition Sensor -G397-. Refer to Vehicle Diagnostic Tester Rain/Light Recognition Sensor -G397-, CODING .
