Rain/Light Recognition Sensor, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal. Note the following:

CAUTION:

Always clean the windshield surface inside the Rain/Light Recognition Sensor -G397- bracket before installing. Remove any traces of the connecting pad still remaining on the windshield.
Surface (connecting pads) of Rain/Light Recognition Sensor -G397- must not be soiled or damaged when installing. Replace the Rain/Light Recognition Sensor -G397- if the connecting pad is damaged.

Surface (connecting pads) of Rain/Light Recognition Sensor -G397- must not be soiled when installing.

If the surface (connecting pads) of the Rain/Light Recognition Sensor -G397- is soiled, it can be potentially cleaned by "applying" and then "pulling off" one or more adhesive strips.

-- Clean the windshield around the base plate thoroughly with isopropyl alcohol. Refer to INTERIOR REARVIEW MIRROR .

-- Remove the cap from the new Rain/Light Recognition Sensor -G397-.

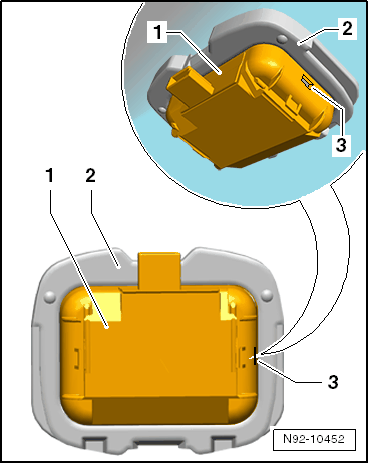

-- Insert the Rain/Light Recognition Sensor -G397- -1- into the retaining plate on the windshield -2- and then press it in securely.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Approximately 10 minutes after installing, there must be no air bubbles between windshield and connecting pads of Rain/Light Recognition Sensor -G397-.

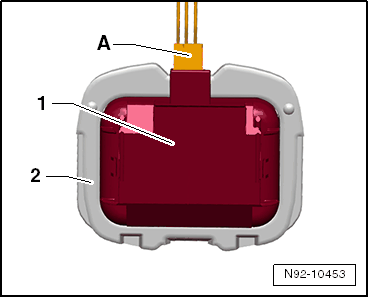

-- Connect the connector -A- and install the wire cover to secure the Rain/Light Recognition Sensor -G397- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the interior rearview mirror. Refer to INTERIOR REARVIEW MIRROR .

-- Code the Rain/Light Recognition Sensor -G397-.
