Overview - Wiper Washer System

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

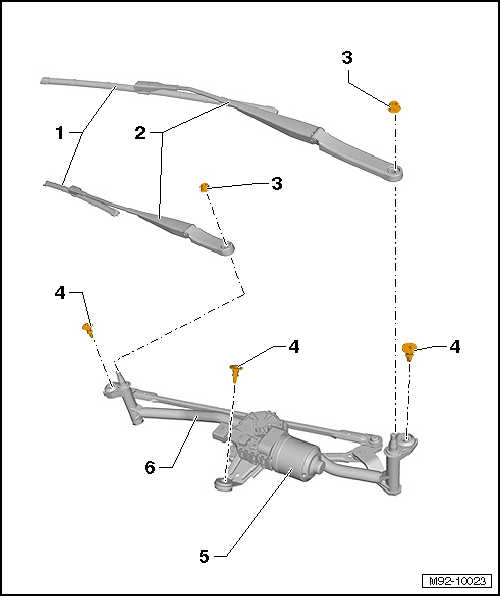

Fig 1: Exploded View Of Wiper Washer System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Joint-Free Windshield Wiper
- Removing and installing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Park position, adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
Windshield Wiper Arm
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
Nut
- 20 Nm
- Quantity: 2
Bolt
- 5 Nm
- Quantity: 3
Windshield Wiper Motor -V- with Wiper Motor Control Module -J400-
- Removing and installing. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
- Wiper Motor Control Module -J400-, coding/APP function, deactivating. Refer to Wiper Motor Control Module -J400-, DEACTIVATING APP .
Wiper Frame with Linkage
- Removing and installing. Refer to WIPER FRAME WITH LINKAGE AND Windshield Wiper Motor -V-, REMOVING .

No illustration tightening specifications:

Windshield Wiper Motor -V- bolts to the wiper frame with linkage: 8 Nm
Windshield wiper motor crank to windshield wiper motor shaft: 18 Nm
