Windshield Washer Fluid Reservoir, Removing And Installing: Notes
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

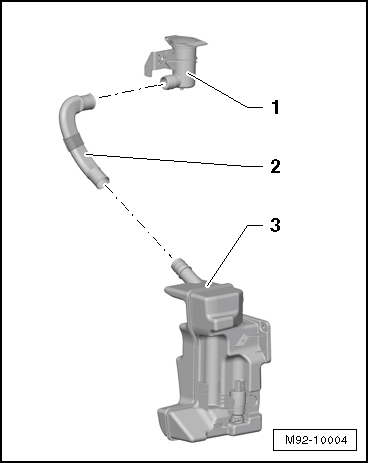

The windshield washer fluid reservoir has three parts. The individual components are connected. In order to guarantee the correct position of the parts with respect to each other, make sure that the guides present on the individual components engage in each other during assembly.
- Filler tube, removing and installing. Refer to FILLER TUBE, REMOVING AND INSTALLING .
- Filler tube connecting pipe to windshield washer fluid reservoir. The connecting pipe and the windshield washer fluid reservoir are removed. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Washer fluid reservoir, removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
