Windshield Washer Fluid Level Sensor, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Remove the right air grille from the front bumper. Refer to FRONT BUMPER .

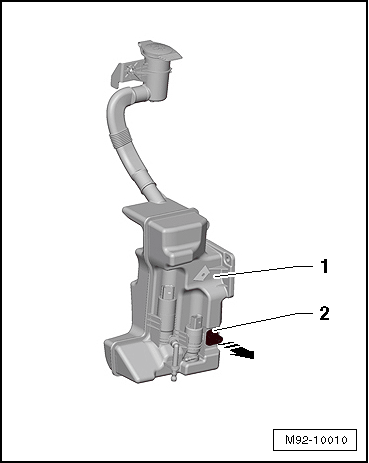

-- Disconnect the connector from the Windshield Washer Fluid Level Sensor -G33- -2-.
-- Pull the Windshield Washer Fluid Level Sensor -G33- -2- out of the rubber seal on the washer fluid reservoir -1-.
-- Catch any draining washer fluid in a suitable container.
