Telephone Microphone -R38-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the Front Interior Lamp -W1-. Refer to CONTROLS .

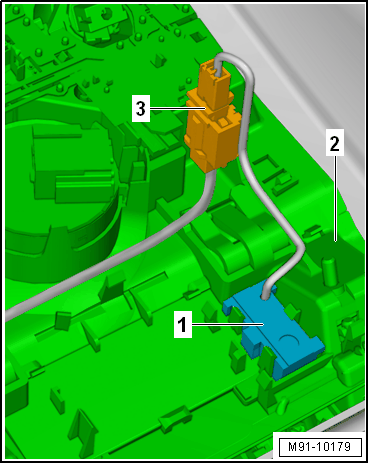

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

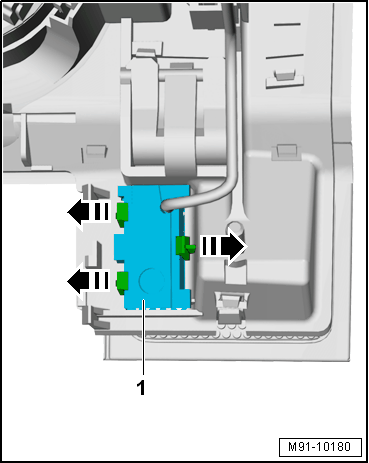

The Telephone Microphone -R38- -1- is clipped into the Front Interior Lamp -W1- -2- with three hooks.

-- Open the hooks in direction of -arrows- and remove the Telephone Microphone -R38- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
