Overview - Sound System, 6 Speakers

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

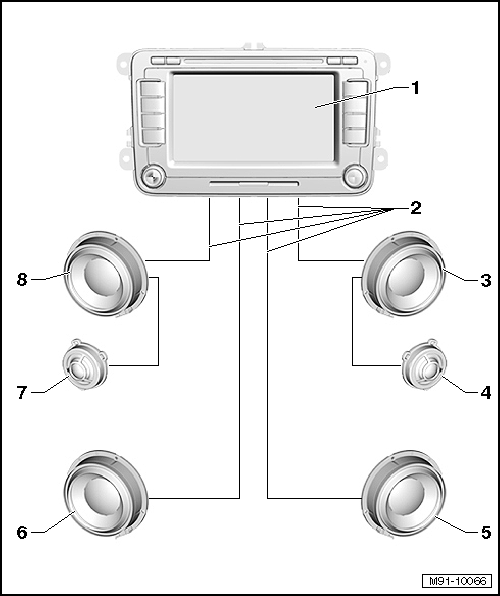

Fig 1: Exploded View Of Sound System, 6 Speakers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Radio -R-
LF Wires
Right Front Bass Speaker -R23-
- Inside the right front door
Right Front Treble Speaker -R22-
- In the right A-pillar
Right Front Midrange Speaker -R104-
- Inside the right front door
Left Front Midrange Speaker -R103-
- Inside the left front door
Left Front Treble Speaker -R20-
- In the left A-pillar
Left Front Bass Speaker -R21-
- Inside the left front door
