Left And Right Rear Treble Speaker -R14- / -R16-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition and all electrical equipment and remove the ignition key.
-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANELS .
CAUTION:
The door trim panel must not be damaged when drilling.

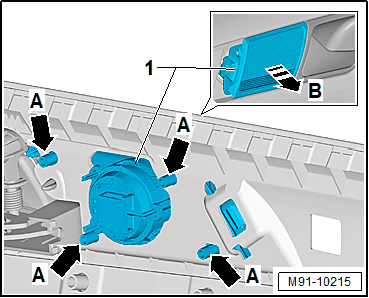

-- Carefully loosen the securing points -A arrows- consecutively on the trim using a suitable drill bit.
-- Remove the Left Rear Treble Speaker -R14- with trim -1- from the rear door trim panel in the direction of the -arrow B-.
