Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the center console. Refer to CENTER CONSOLE .

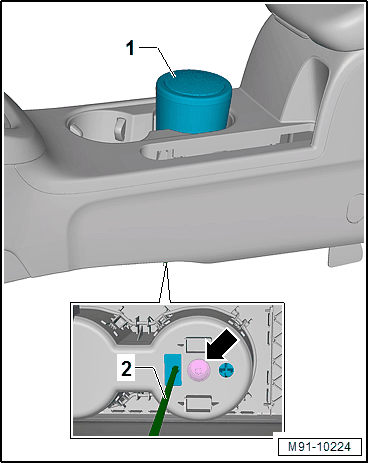

-- Release and disconnect the connector for the Emergency Call Module Speaker -R335- -1-.
-- Remove the wiring harness -2- from the center console.
-- Remove the bolt -arrow-.
-- Remove the Emergency Call Module Speaker -R335- -1- from the center console and at the same time pay attention to the wiring harness -2-.
