Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the partition. Refer to PARTITION, REMOVING AND INSTALLING .

CAUTION:

There is a risk of burns from the hot radiating surfaces on the control module.

It is possible to burn hands.

- Wear safety gloves.

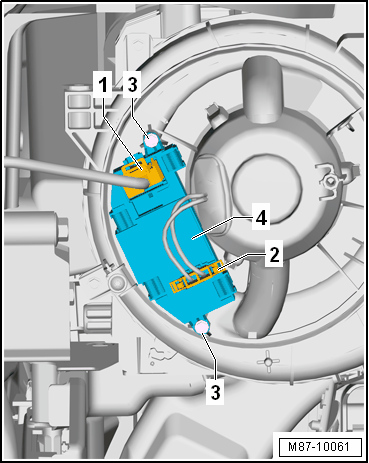

-- Disconnect the connectors -1 and 2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -3-.

-- Remove the Fresh Air Blower Control Module -J126- -4-.

Install in reverse order of removal.
