Vehicle Interior Forced Air Extraction, Removing And Installing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools And Workshop Equipment Required
- Trim Removal Wedge :3409
-- Remove the rear bumper cover. Refer to REAR BUMPER .

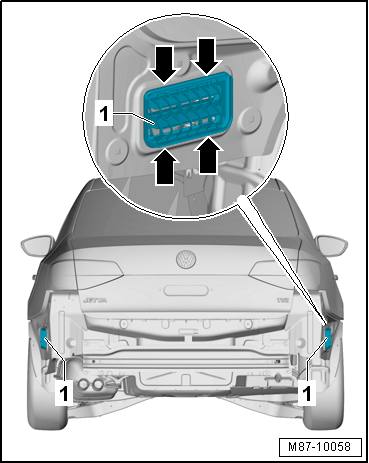

-- Release the forced air extraction near the -arrows- using the :3409 .
-- Remove the forced air extraction -1- from the side panel.
Installing
-- Install in reverse order of removal.
