Right Vent Temperature Sensor -G151-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the instrument panel side cover. Refer to INSTRUMENT PANEL .

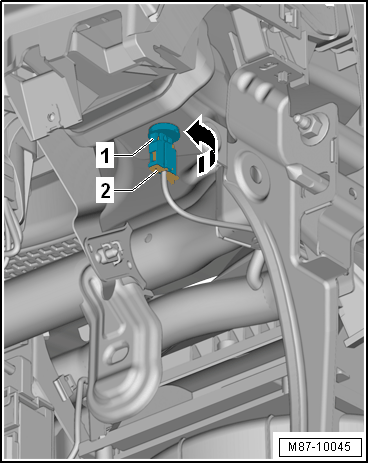

-- Disconnect the connector -2-.

GWWM87-10045Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the Right Vent Temperature Sensor -G151- -1- in the direction of -arrow- and remove it from the mount.
