Overview - Horn
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

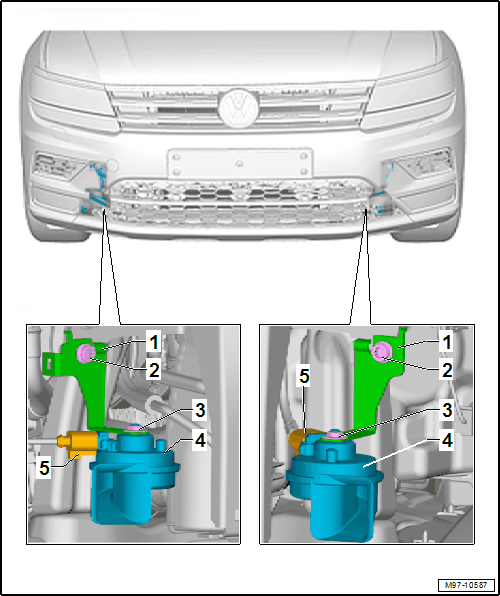

The vehicle in the illustration is only a basic outline.
- Bracket
- For the High Tone Horn -H2- / Low Tone Horn -H7-
- Removing and installing. Refer to BRACKET FOR High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
- Bolt
- 18 Nm
- Nut
- 9 Nm
- Horn
- High Tone Horn -H2- is installed on the left
- Low Tone Horn -H7- in installed on the right
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
- Connector
