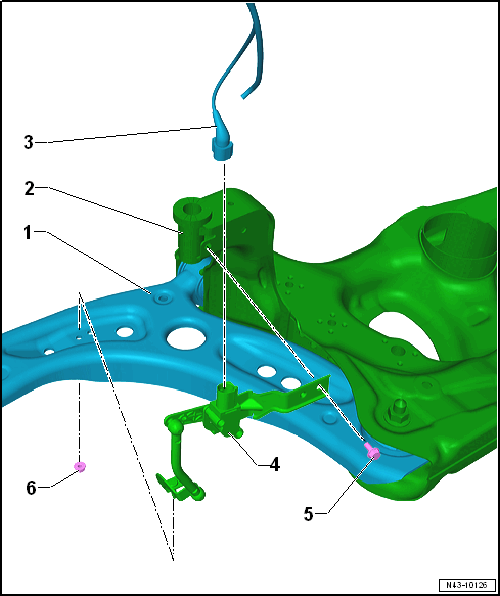

Overview - Front Level Control System Sensor
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A replacement Front Left and Right Level Control System Sensor -G78/G289- only comes complete with the coupling rod and the upper and lower retaining plate.
- Control Arm
- Subframe
- Connector
- Left Front Level Control System Sensor -G78- and Right Front Level Control Sensor -G289-
- Complete with attachments
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to LEFT/RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
- Adjust the headlamps to the basic setting. Refer to HEADLAMP, ADJUSTING .
- Bolt
- 8 Nm
- Nut
- 8 Nm
- Replace after removing.
