Radiator, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .

-- Remove upper left coolant hose from radiator -arrow-.

Fig 1: Identifying Upper Coolant Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .

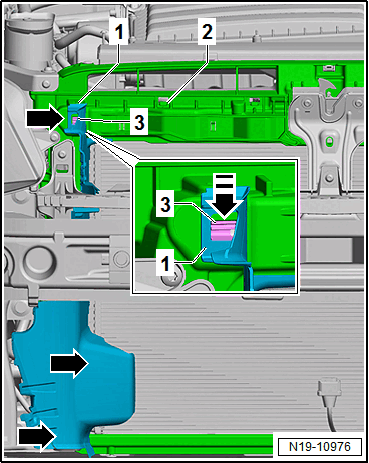

-- Unclip the air ducts -1- on both sides of the lock carrier -2- in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To do this release the catches -3- in the direction of -arrow- and remove the air guide. Ignore the lower arrows.

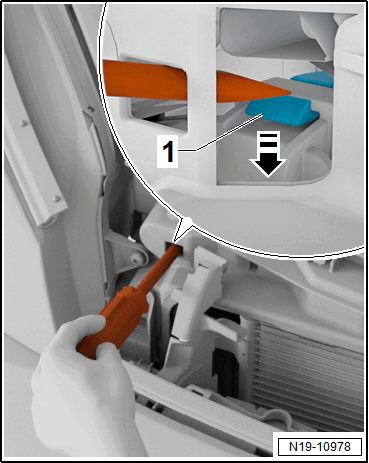

-- Through the opening in the lock carrier, press the left and right locking tabs -1- for the radiator downward. Pull the radiator off of the charge air cooler.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot the radiator to the engine and lift upward from the charge air cooler bracket. Remove radiator downward.
