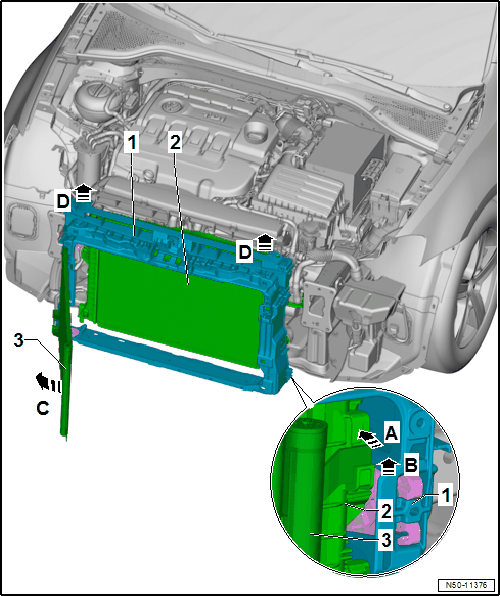

Lock Carrier, Removing And Installing: Notes
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Guide Pins: T10093
- Torque Wrench 1331 5-50Nm: VAG1331
- Torque Wrench 1332 40-200Nm: VAG1332
NOTE:
The lock carrier is a safety related component. For this reason the lock carrier may only be serviced in the specified positions.
Replace the lock carrier if it is damaged.
For vehicles with the Distance Regulation Control Module -J428-, the Distance Regulation Control Module -J428- must be realigned every time the lock carrier is removed and installed or replaced.
Notes and work procedures for the Distance Regulation Control Module -J428-. Refer to Adaptive Cruise Control (ACC) .
